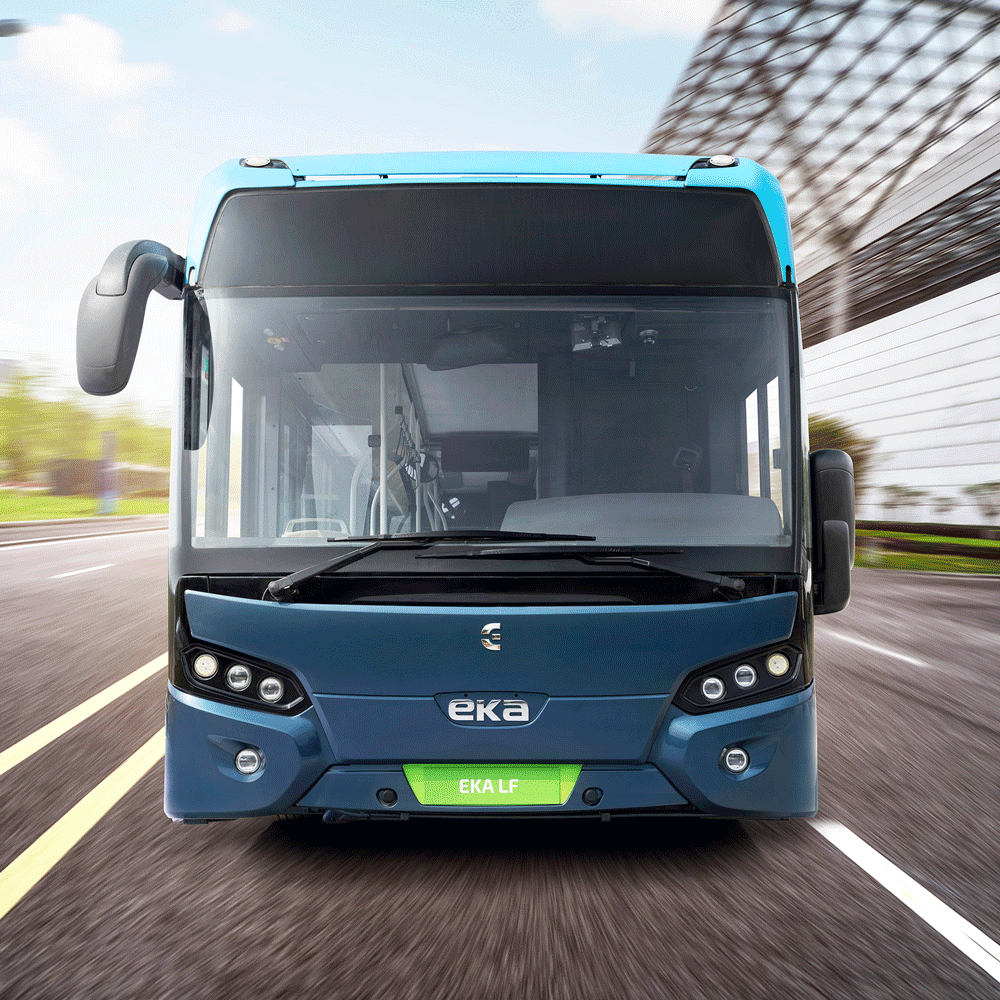

EKA LF
Eco-friendly Operation with Peak Efficiency With spacious interiors, smooth ride quality, and flexible design, the EKA LF is a zero tailpipe-emission low-floor bus designed for easy accessibility and efficient mobility in specialised environments.
Comfort
- Multiple Configurations
- Climate-controlled AC
- Air Suspension with ECAS
- Full Standing Height
- Completely Flat Floor
- Low NVH Levels
- Accommodation for Wheelchair
Economy
- Lowest Total Cost of Ownership
- CCS2 Fast Charging—Dual Gun
- Pantograph for Overhead Charging
- Long Range on Single Charge
- Lightweight Structure
Safety
- Disc Brakes with EBS
- Sturdy Axles
- Tubeless Radial Tyres
- Lithium Ferrous Phosphate Battery
- ADAS System
- Liquid Cooled Battery
Performance
- Driver-Centric Cockpit
- Electrohydraulic Power Steering
- Integrated Dashboard
- Lightweight Chassis
- Modular Architecture
- Regenerative Braking
| Specification Category / Parameter | Details |
|---|---|
| Chassis Construction Type | Modular |
| Max Seating Capacity |
• D + 27 + WC + 3 Folding Seats; 3 Passenger Doors (LHD Version) • D + 35 + WC + 3 Folding Seats; 2 Passenger Doors (Front - 850mm, Middle - 1350mm) (RHD Version) • D + 33 + WC + 3 Folding Seats; 2 Passenger Doors (Front - 1350mm, Middle - 1350mm) (RHD Version) |
| Dimensions (L X W X H) | 12000 X 2550 X 3290 mm |
| Wheelbase | 5850 mm |
| GVW (Gross Vehicle Weight) | 18745 kg |
| Steering | Electrohydraulic Power Steering |
| Suspension | Front & Rear Electronically Controlled Air Suspension (ECAS) |
| Brakes | Front & Rear: Disc Brakes with Emergency Braking System (EBS) |
| Climate Control | Heating Ventilation and AC (Service Unit + Free Flow, Capacity: 36 kW) |
| Tyre Type | Tubeless Radial |
| Tyre Size | 275/70 R22.5 |
| Max Power | 160 kW |
| Max Torque | 2500 Nm |
| Battery Type | Lithium Ferrous Phosphate (LFP) |
| Battery Capacity | 350 kWhr |
| Operating Voltage | 580 to 660 V |
| Charging | 1. Pantograph for Overhead Charging 2. Plug-in CCS2 Fast Charger; Dual Gun |
| Charger Options | 180 kW | 240 kW |
| Charging Time | 2.5 hrs | 2 hrs |
| Range | 280 km* (as per standard driving cycle) |
| Gradeability | 12% |
| Max Speed | 75 kmph |
