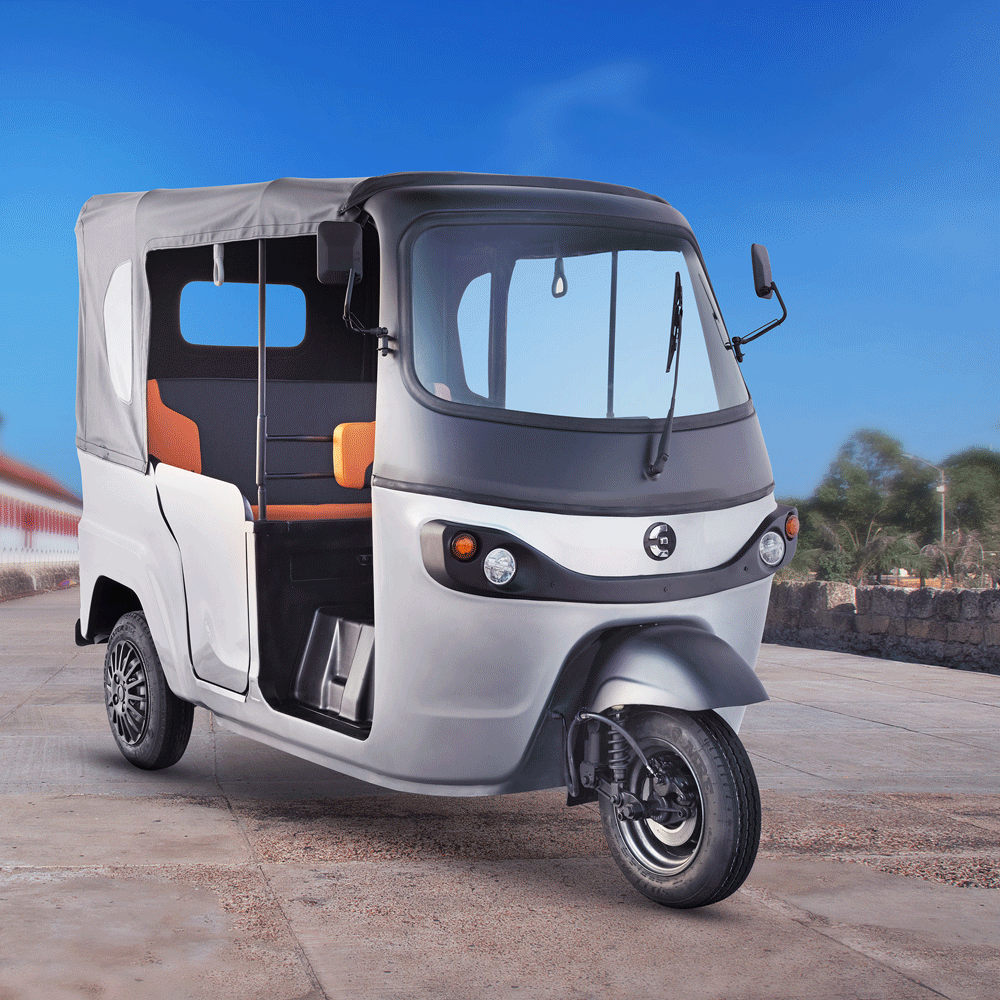

EKA 3S
Smooth, Sustainable & Reliable Last-Mile Connectivit. EKA 3S is a light passenger three-wheeler designed for efficient & hassle-free city mobility. EKA 3S offers a comfortable, eco-friendly, and reliable solution for quick commutes.
Class-Leading Performance
- Best-in-Class Range
- Highest Battery Capacity
- Easy Home Charging
- Efficient 10 kW Motor
- Fast Charging Option Available
- Enhanced Regenerative Braking
Long-Term Reliability
- Rugged Aggregates
- Disc and Drum Brakes
- In-House VCU
- Well-Sprung Suspension
- Stable Ladder Frame Chassis
- Durable Transaxial eAxel
- Strong Metal Body
Comfort & Convenience
- Comfortable Seating
- Ample Room for Three Passengers
- Low Entry Height
- Luggage Space at Rear
- Aerodynamic Design
EKA Advantage
- 5 Yrs. or 1.20 Lakh Km Battery Warranty
- 1st Year AMC Free
- Clear TFT Cluster
- Ample Storage
- Powerful LED Lights
- Easy Repairability & Replaceability of Parts
| EKA 3S - Detailed Specifications | |
|---|---|
| Vehicle Category | L5M |
| Steering | Handlebar |
| Battery Type | Lithium Ferrous Phosphate (LFP) |
| Battery Capacity | 10.75 kWhr |
| Max Power | 10 kW |
| Max Torque | 55 Nm |
| Gradeability | 21% (Continuous) |
| Hill Hold Assist | Yes |
| Tyre Size | Tubeless; 120/80 R12 |
| Transmission | Automatic |
| Front Suspension | Helical Spring + Damper + Hydraulic Damper |
| Rear Suspension | Independent Trailing Arm with Helical Spring & Hydraulic Damper |
| Brakes | Front: Disc Brakes | Rear: Drum Brakes |
| Operating Voltage | 51.2 V |
| Battery Warranty | 5 Years or 1,20,000 km (whichever is earlier) |
| Max Speed | 60 kmph |
| Range on Single Charge | 160 km* |
| Ground Clearance | 187 mm |
| Seating Capacity | D + 3 |
| Charger Specifications | ||
|---|---|---|
| Charging Option | Charging Socket Grid Size | Charging Time |
| Charging Option 1 – Single Phase AC Charging / Home Charging | 3 Pin 16 Amp | 3.5 hrs |
| Charging Option 2 – DC Fast Charging | Type 6 DC | 2 hrs |
* Depending on the application & driving cycle.
