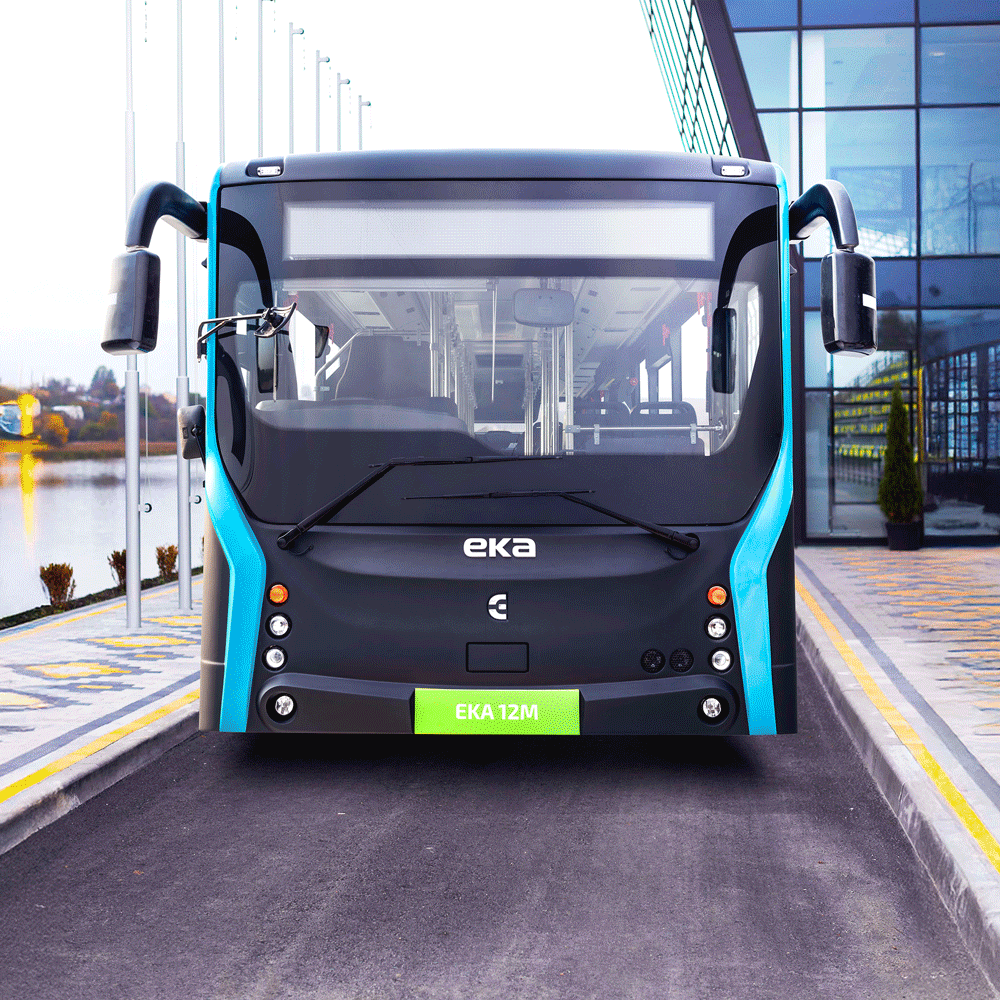

EKA 12M
Pure Electric Environment Conscious Commutes Featuring zero-emission technology, spacious interiors, and reliable performance, the EKA 12M redefines Environment Conscious commutes with its blend of comfort and efficiency.
Comfort
- 2X2 & 3X2 Configurations
- Climate-controlled AC
- Bacterial Filtration System
- Air Suspension with ECAS
- Full Standing Height
- Low NVH Levels
- Accommodation for Wheelchair
Economy
- Lowest Total Cost of Ownership
- CCS2 Fast Charging—Dual Gun
- Long Range on Single Charge
- Lightweight Structure
Safety
- Stainless Steel Monocoque Chassis
- Sturdy Axles
- Tubeless Radial Tyres
- Lithium Ferrous Phosphate Battery
- ADAS System
- Liquid Cooled Battery
Performance
- Driver-Centric Cockpit
- Electro-Hydraulic Power Steering
- Integrated Dashboard
- Lightweight Chassis
- Modular Architecture
- Powerful Permanent Magnet Synchronous Motor
- Regenerative Braking
| Specification Parameter | Details |
|---|---|
| Chassis Construction Type | Ladder |
| Max Seating Capacity | D + 43 (2 X 2) D + 54 (3 X 2) (Handicap-friendly version available) |
| L X W X H | 12000 X 2600 X 3600 mm |
| Wheelbase | 6200 mm |
| GVW | 19500 kg |
| Steering | Electro-Hydraulic Power Steering System with Tilt & Telescopic Mechanism |
| Suspension | Air Suspension (Electronic Controlled Air Suspension (ECAS) is an option) |
| Brakes | Front: Disc Brakes | Rear: Drum Brakes |
| Climate Control | AC (Demister optional) |
| Type (Climate Control) | Service Unit + Free Flow |
| Capacity (Climate Control) | 32 kW |
| Tyre Type | Tubeless Radial |
| Tyre Size | 295/80 R22.5 |
| Max Power | 240 kW |
| Max Torque | 3000 Nm |
| Battery Type | Lithium Ferrous Phosphate (LFP) |
| Battery Capacity | 300 kWhr |
| Operating Voltage | 660 V |
| Charging | Plug-in CCS2 Fast Charger; Dual Gun |
| Charger Options | 180 kW | 240 kW (Single Gun) |
| Charging Time | 3.5 hrs | 2.5 hrs |
| Range | 250 km* |
| Gradeability | 17% |
| Max Speed | 80 kmph |
