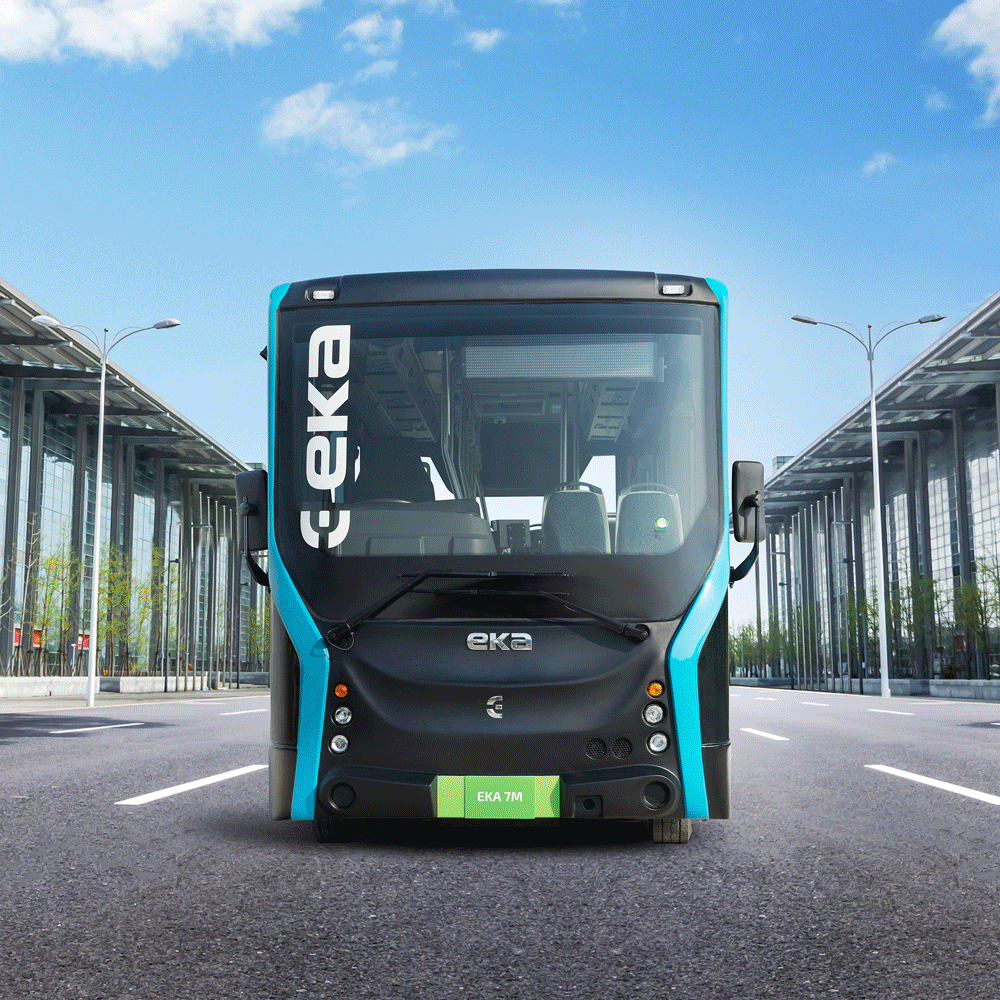

EKA 7M
Small in Size, Big on Efficiency EKA 7M is an agile, zero-tailpipe emission bus designed for efficient transits, perfect for narrow lanes, hilly terrain, and feeder routes. EKA 7M offers reliable performance and maximised efficiency over short-distance commutes.
Comfort
- 2X1 & 2X2 Configurations
- Powerful Air Conditioner
- Air Suspension
- Low NVH Levels
Economy
- Lowest Total Cost of Ownership
- CCS2 Fast Charging
- Long Range on Single Charge
- Lightweight Structure
Safety
- Monocoque Chassis
- Disc Brakes
- Tubeless Radial Tyres
- Lithium Ferrous Phosphate Battery
- Liquid Cooled Battery
Performance
- Driver-Centric Cockpit
- Electro-Hydraulic Power Steering
- Integrated Dashboard
- Lightweight Chassis
- Modular Architecture
- Regenerative Braking
| Specification Parameter | Details |
|---|---|
| Chassis Construction Type | Monocoque |
| Max Seating Capacity | D + 19 (2x1) D + 22 (2X2) |
| L X W X H | 6950 X 2190 X 2800 mm |
| Wheelbase | 4300 mm |
| GVW | 8900 kg |
| Steering | Electro-Hydraulic Power Steering System with Tilt & Telescopic Mechanism |
| Suspension | Air Suspension |
| Brakes | Front & Rear: Disc Brakes |
| Climate control | AC (Demister optional) |
| Type | Service Unit + Free Flow |
| Capacity | 20 kW |
| Tyre Type | Tubeless Radial |
| Tyre Size | 215/75 R17.5 |
| Max Power | 124 kW |
| Max Torque | 1500 Nm |
| Battery Type | Lithium Ferrous Phosphate (LFP) |
| Battery Capacity | 100 kWhr |
| Operating Voltage | 660 V |
| Charging | Plug-in CCS2 Fast Charger |
| Range | 160 km* (as per standard driving cycle) |
| Gradeability | 17% |
| Max Speed | 75 kmph |
