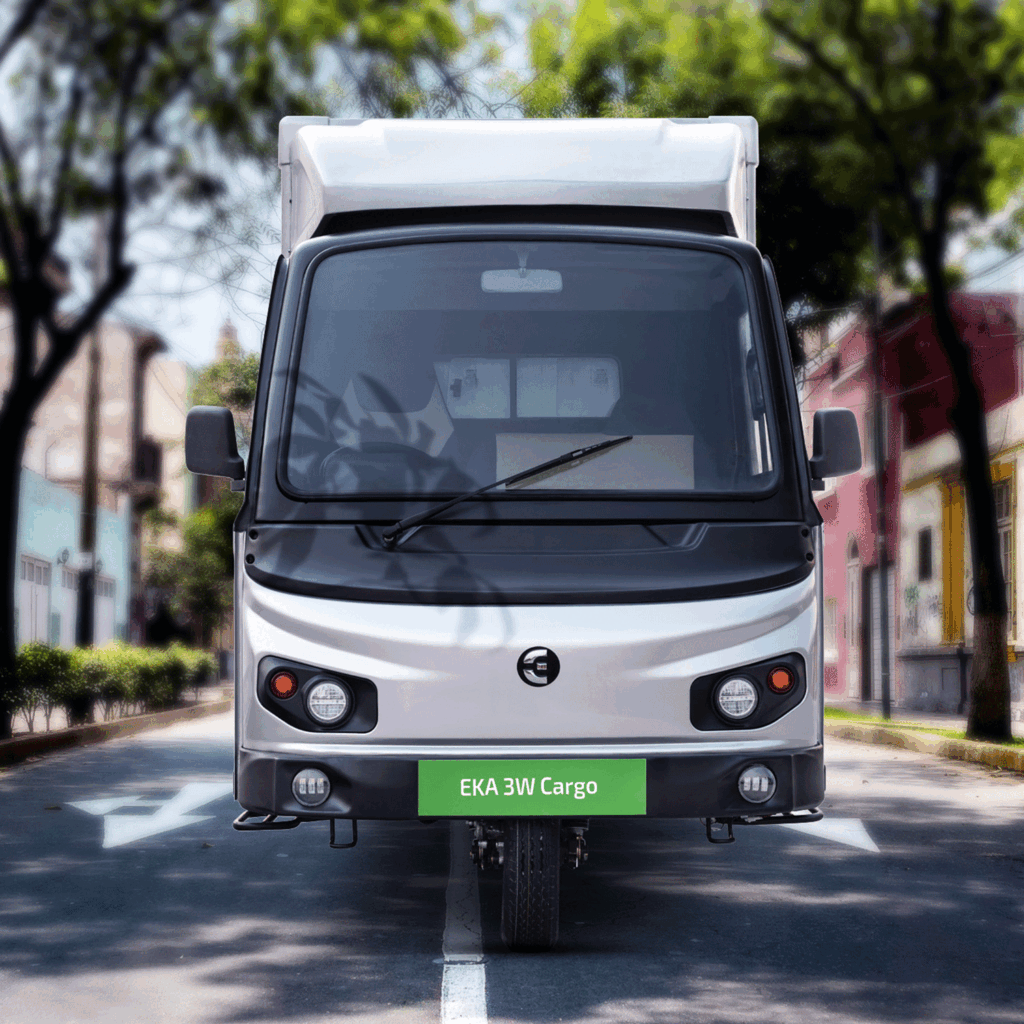

EKA 3W Cargo
Combining Agility with Sustainable Performance EKA 1700K is a nimble, zero-tailpipe emission three-wheeled vehicle designed for last-mile urban logistics. EKA 1700K delivers efficient, eco-friendly performance, making it ideal for light transport needs.
Rugged Build
- Ladder-frame Chassis
- MacPherson Independent Front Suspension
- Longitudinal Leaf Spring Rear Suspension
- Sturdy MS/AL Body
- Centrally Mounted Battery Pack
Comfortable Cabin
- Rack and Pinion Steering
- Ventilated Cabin with High Headroom
- Comfortable Bucket Set for Driver
- Best-in-Class D+2 Seating
- 12V Mobile Charger
- TFT Display
- Ample Storage Space
Smart Safety
- i-Pedal Technology
- LED Headlights
- 12-Inch Tubeless Tyres
- Hill Hold Assist
Advanced Efficiency
- Best-in-Class 2400mm Deck Length
- 200 ft3 Cargo Volume
- Class-leading 770kg Payload Capacity
- On-board Charger
- 180 km Range
- Child-Part Level Repairability & Replaceability
- Enhanced Regenerative Braking
- Lower TCO than ICE Competitors
Vehicle & Performance Specifications
| Specification | Details |
|---|---|
| Vehicle Category | L5N |
| Payload Capacity | 750 kg |
| Gross Vehicle Weight (GVW) | 1700 kg |
| Peak Power | 15 kW |
| Peak Torque | 80 Nm |
| Max Speed | 50 kmph |
| Gradeability | 19% |
| Range on Single Charge | Up to 200 km (Depending on application & driving cycle) |
| Hill Hold Assist | Yes |
Battery & Charging Specifications
| Specification | Details |
|---|---|
| Battery Type | Lithium Ferrous Phosphate (LFP) |
| Battery Capacity | 20 kWh |
| Operating Voltage | 51.2 V |
| Charging Option 1 | Single Phase AC Charging / Home Charging (3 Pin 16 Amp socket) - 6.5 hrs |
| Charging Option 2 | DC Fast Charging (Type 6 Connector) - 3 hrs |
Body & Container Specifications
| Specification | Details |
|---|---|
| Body Type | Sturdy MS/AL Body |
| Vehicle Dimensions (L x W x H) | 3,950 x 1,580 x 2,400 mm |
| External Container Dimensions | 2,300 x 1,550 x 1,750 mm |
| Cargo Volume | 200 ft³ / 220 ft³ (varies by layout configuration) |
| Wheelbase | 2,550 mm |
| Ground Clearance | 172 mm |
| Turning Radius | 5 m |
Chassis, Suspension, Steering & Braking
| Specification | Details |
|---|---|
| Chassis | Ladder-frame Chassis |
| Front Suspension | Dual Helical Spring with Damper |
| Rear Suspension | Shock Absorber with Torsion Bar |
| Steering | Rack & Pinion Steering Wheel |
| Brakes | Front: Disc Brakes | Rear: Drum Brakes |
| Tyre Size | Tubeless; 130/80 R12 |
Warranty Details
| Component / Vehicle Part | Warranty Terms |
|---|---|
| Vehicle Warranty | 3 Years or 1,25,000 km (whichever is earlier) |
| Battery Warranty | 6 Years or 1,65,000 km (whichever is earlier) |
