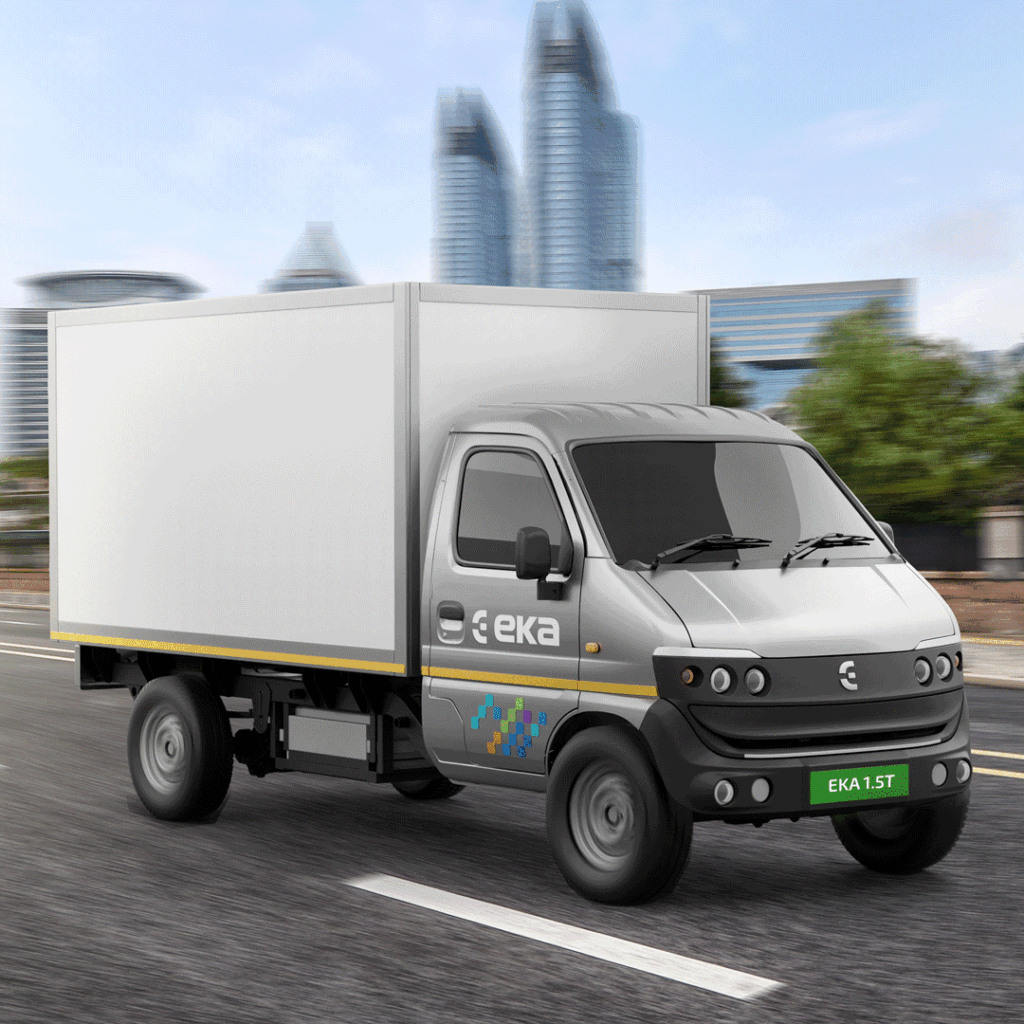

EKA 1.5T
Smart and Efficient, Engineered for Comfort EKA 1.5T is a zero-tailpipe emission vehicle designed for mid-mile urban logistics. EKA 1.5T combines reliable performance with sustainability, offering an efficient solution for diverse transportation needs.
Rugged Build
- Ladder-frame Chassis
- MacPherson Independent Front Suspension
- Longitudinal Leaf Spring Rear Suspension
- Sturdy MS/AL Body
- Centrally Mounted Battery Pack
Comfortable Cabin
- Electrically Assisted Steering
- Automatic Transmission
- 12V Mobile Charger
- TFT Display
- Ample Storage Space
Smart Safety
- Front Disc Brakes
- LED Headlights
- Stable Suspension
- 14-Inch Tyres
Advanced Efficiency
- Lowest Total Cost of Ownership
- Best-in-Class 9ft. Deck Length
- 300 ft3 Cargo Volume
- Class-leading 1500kg Payload Capacity
- Wall-mounted Charger
- 180 km Range
Performance & Capacity Specifications
| Payload Capacity | 1,500 kg |
| Peak Power | 60 kW |
| Peak Torque | 220 Nm |
| Gradeability | 18% |
| Range | 180 km (Depending on application & driving cycle) |
Battery & Charging Specifications
| Battery Type | Lithium Ferrous Phosphate (LFP) |
| Charging Mode | Single Phase AC Charging |
| Input Voltage | 240 ± 10% & 50Hz ± 5% |
| Input Current | 32 A (max) |
| Charging Installation Form | Wall-mounted |
| Charging Time | 4 hours |
Body & Container Specifications
| Body Type | Sturdy MS/AL Body |
| External Dimensions (L x W x H) | 2,750 x 1,750 x 1,956 mm |
| Internal Dimensions (L x W x H) | 2,687 x 1,692 x 1,855 mm |
| Cargo Volume | 8.44 m³ / 300 ft³ |
| Branding Space | Available Area: 13.01 ft² |
Chassis, Suspension & Braking
| Chassis | Ladder-frame Chassis |
| Front Suspension | MacPherson Independent Front Suspension |
| Rear Suspension | Longitudinal Leaf Spring Rear Suspension |
| Steering Type | Rack & Pinion Type, Electrically Assisted |
| Brakes | Front: Disc Brakes | Rear: Drum Brakes |
Warranty Details
| Vehicle Warranty | 3 Years or 1,65,000 km (whichever is earlier) |
| Battery Warranty | 6 Years or 1,65,000 km (whichever is earlier) |
